Overview & Specifications
What Are Reinforced Handle Gable Boxes?

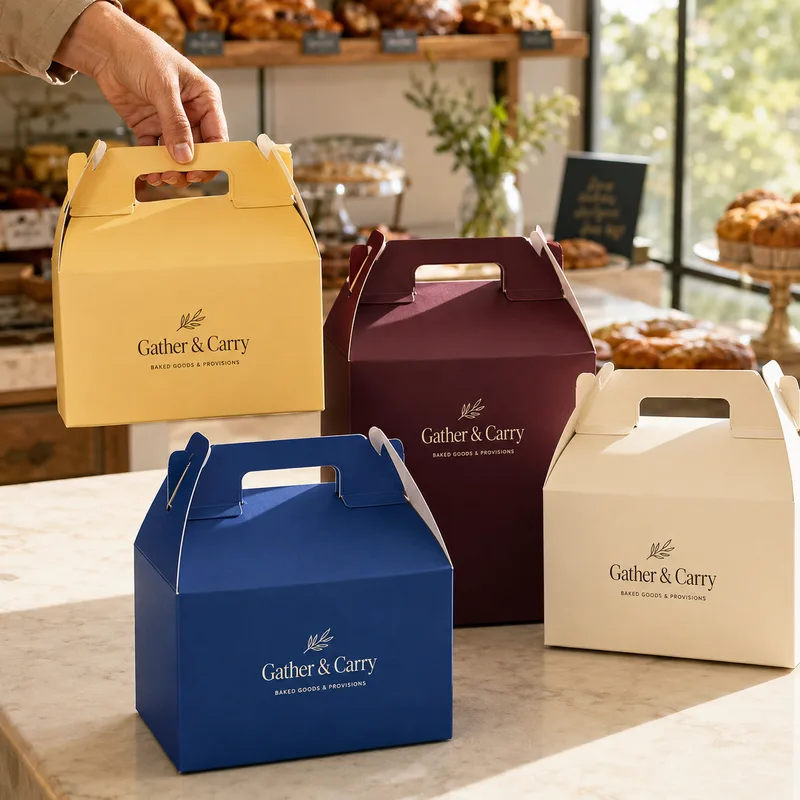

Reinforced handle gable boxes are the heavy duty option in the gable range: the handle area gets extra board layers or folded reinforcement, and the board and base are chosen for the packed weight. There is no universal weight rating; capacity is confirmed for each construction.
Reinforced Handle Gable Boxes sit in the Gable Boxes range, on Auto Lock, Interlock or Seal End bases, and under Retail Packaging.
What it has to do
What a Heavier Load Needs from a Gable Box
A heavier gable box needs extra support at the carry point, board suited to the weight, a base that holds the load, an even load inside and a capacity confirmed for the build. Each need below is matched to the option that meets it.
01
Extra
Extra Support at the Carry Point
Added board layers or folded reinforcement concentrate support where the box is gripped and lifted.02
Board
Board Suited to the Weight
Thicker paperboard or E-, F- or B-flute corrugated is selected for stiffness and fold behavior under load.03
Base
A Base That Holds the Load
Auto Lock, Interlock or Seal End is chosen with the handle, because a strong handle does not strengthen the base.04
Even
An Even Load Inside
Dividers and inserts keep jars, bottles or sets from shifting and pulling on one side of the handle.05
Capacity
Capacity Confirmed for the Build
There is no universal rating. Carry capacity depends on board, reinforcement, dimensions and load distribution, and is tested where required.
Reinforced Handle vs Standard Gable Handle
Choose a reinforced handle when the packed weight strains a standard handle, and a standard handle for light contents. The table compares the two.
| Attribute | Reinforced Handle | Standard Gable Handle |
|---|---|---|
| Carry point | Added board or folds | Handle construction per dieline |
| Typical contents | Jars, bottles, gift sets, heavier food orders | Treats, favors, light gifts |
| Board | Thicker paperboard or corrugated | Paperboard by product |
| Capacity | Confirmed per construction | Light loads |
| Base | Chosen for the load | Chosen by packing method |
Reinforced Handle Gable Boxes Specifications
Reinforced Handle Gable Boxes are specified around the contents, the board, the gable base and the handle. Review the specifications below to plan the carton.
| Specification | Available Configuration |
|---|---|
| Product Type | Gable carton with reinforced handle area |
| Category | Gable Boxes |
| Base Structure | Auto Lock, Interlock or Seal End, chosen by packing method and packed load |
| Top Closure | Integrated gable handle |
| Dimensions | Customized around the product and load distribution |
| Board | Paperboard or corrugated board selected for stiffness, fold behavior and print |
| Board Caliper | Paperboard from about 14 pt to 28 pt, or E-, F- or B-flute corrugated; matched to the product and packed weight |
| Interior | Dividers or inserts that spread the load and stop movement |
| Windows | Die-cut window with clear PET film, or open die-cut window |
| Handle Reinforcement | Added board layers or folded reinforcement per approved dieline |
| Weight Rating | No universal value; confirmed from the final construction and testing where required |
| Print Coverage | Exterior only, exterior + interior, or full inside and outside |
| Print Methods | Offset, digital, UV or screen printing; CMYK and Pantone spot colors |
| Coatings and Finishes | Matte, gloss or soft-touch lamination, aqueous or grease-resistant coating, foil stamping, emboss/deboss, Spot UV and raised 3D UV, according to the board |
| Starting Price | From $0.95 / unit; final price depends on size, board, print, finishes and quantity |
| Minimum Order | 500 units |
| Standard Production | 7 days from approved proof |
| Rush Production | Available on request |
| Shipping | Ships flat, USA and worldwide |
How Do You Spec a Heavy Duty Gable Box?
Start from the full packed weight and how it sits in the box, then size the carton. Board, reinforcement and base are confirmed together on the approved dieline.
| Measurement | What to Record |
|---|---|
| Contents | Items, dimensions and arrangement |
| Weight | Full packed weight |
| Carry | How far and how the box is carried |
| Base | Packing method |
Carry-Test a Packed Sample
Pack a sample to the full weight and carry it by the handle as customers will. Check the handle, the side panels and the base.
What to Check Before Bulk Production
Review a sample packed to the full weight and printed with the final artwork. Record the approved board, reinforcement, base and load on the signed-off sample.
| If the sample shows | Review before approval |
|---|---|
| Handle tears or creases | Review board, dimensions, reinforcement and load distribution; confirm on a packed carry sample |
| Base bows | Review board, dimensions, reinforcement and load distribution; confirm on a packed carry sample |
| Box tilts when carried | Review board, dimensions, reinforcement and load distribution; confirm on a packed carry sample |
| Side panels bulge | Review board, dimensions, reinforcement and load distribution; confirm on a packed carry sample |
Seven days covers standard production from approved proof once the specification is confirmed; delivery timing is confirmed separately.
