Does the window stay sealed?

Yes. The clear section is part of the closed pouch construction. The exact method used to create the window depends on the film and production process selected for the project.

Can I choose the shape and size of the clear window?

Yes. Window size, shape and placement can be customized within the limits of the pouch structure, seals, zipper or fitment position, artwork and production method.

Does a clear window reduce barrier protection?

The transparent area provides less light protection than an opaque or metallized panel. Moisture, oxygen and aroma performance depend on the complete clear-window film construction selected for the project.

What is the difference between a window pouch and a clear-front pouch?

A window pouch keeps most of the panel printed or opaque while exposing a defined viewing area. A clear-front pouch uses a much larger transparent front panel and should be designed as that specific construction.

Where should the window be placed?

Below the product's settled fill line and clear of zippers, spouts, gusset folds and seals, so it shows the product rather than empty headspace.

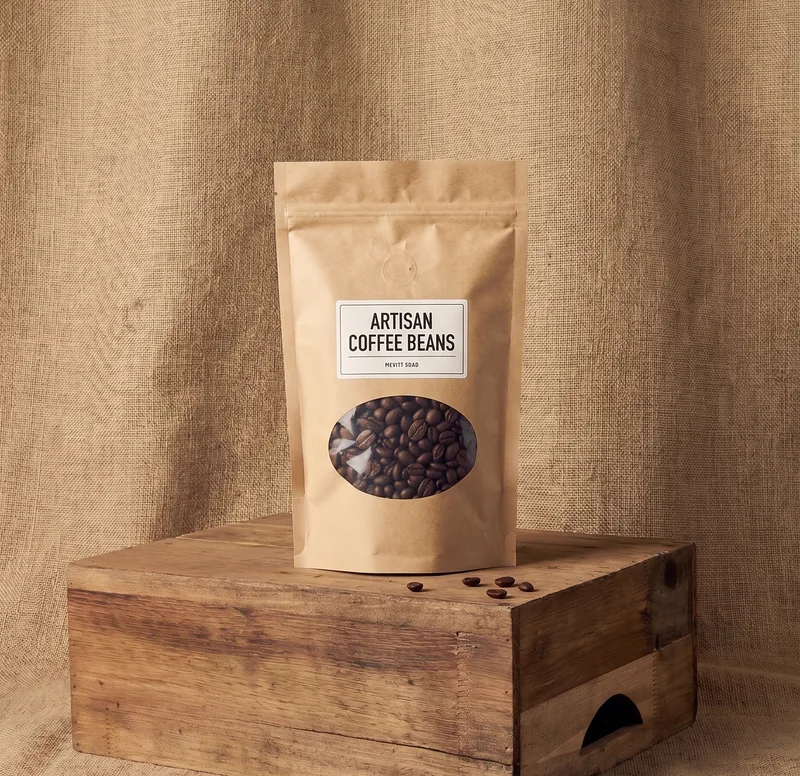

Can kraft Mylar bags have a window?

Yes, where a compatible kraft paper laminate construction is used. The window is registered within the kraft-look panel.

Are Mylar bags with window suitable for food?

They can be developed for suitable food applications when the film, inks, adhesives, seals and other components are specified for the intended food-contact conditions. Barrier requirements are evaluated separately from food-contact suitability. See Food Safe Mylar Bags.

Can I order custom printed window pouches in bulk?

Yes. Custom pouch formats, dimensions, windows, printing and closures are available for production orders. Minimum order starts from 500 units after the window construction is confirmed.

Mylar Bags with Window | Custom Clear Window Pouches

Q: What are Mylar bags with window?

They are flexible Mylar-style pouches with a sealed transparent area that allows the contents to remain visible through part of the package.

Q: Can I order a stand up pouch with window?

Yes. Stand Up Pouches are one of the compatible structures. Flat Bottom, 3 Side Seal, Spout and Back Seal formats can also support a window when the selected construction allows it.

Product Details

Overview & Specifications

What Are Mylar Bags with Window?

Mylar bags with window are flexible pouches that combine printed or opaque areas with a sealed transparent section for direct product visibility. The window stays part of the closed package and can be a small reveal, a strip, a custom shape or a larger clear panel depending on the pouch format and production method.

They are part of the Mylar Bags range. A fully transparent front is a different construction, a clear-front pouch, and is planned as such.

What it has to do

What Products Need from a Window Pouch

A window pouch has to show the product without giving up too much protection, put the clear area where the product actually sits and work with the artwork around it. Each need below is matched to how Mylar bags with window meet it.

01
Show
Show the Product Before Purchase
A clear viewing area lets customers inspect color, texture, size or appearance without opening the pouch, which helps in categories where the look of the product drives the sale.
02
Keep
Keep the Barrier Where It Matters
Transparent areas provide less light protection than opaque or metallized sections. Window size and placement are selected alongside the product's sensitivity to light, moisture, oxygen and aroma.
03
Place
Place the Window Around the Fill
The clear area is positioned against the expected fill level so it shows the product, not empty headspace, and stays clear of zipper tracks, spout fitments, gusset folds and seal zones.
04
Design
Design Artwork Around the Clear Area
Artwork is designed around the window so the visible product becomes part of the package design rather than a feature added after the design is complete.
05
Meet
Meet Food-Contact Needs Where Required
For food, the clear film, inks, adhesives, seals and other components are specified for the intended food-contact conditions, separately from barrier performance.

Window vs Clear-Front vs Fully Opaque Pouches

A window pouch shows a defined part of the product while most of the panel stays printed or opaque. A clear-front pouch shows nearly the whole front but gives the least light protection. A fully opaque pouch shows nothing but protects best against light.

Feature	Window Pouch	Clear-Front Pouch	Fully Opaque Pouch
Product visibility	Defined viewing area	Most of the front panel	None; graphics only
Light protection	Reduced at the window	Lowest on the front	Full panel
Print area	Planned around the window	Mainly back panel and labels	Whole surface
Best for	Snacks, candy, nuts, pet treats	Products sold on appearance with low light sensitivity	Light-sensitive products such as coffee and chocolate

Which Pouch Format Fits Your Window Bag?

Windows can be developed on Stand Up, Flat Bottom, 3 Side Seal, Spout and Back Seal pouches. Stand Up pouches with window are the most common retail choice; Flat Bottom adds side panels that can carry a window; 3 Side Seal suits flat packs; Spout and Back Seal need the window planned around the fitment or seam.

Format	Best for with a window	Decision factor
Stand Up Pouch	Retail snacks, candy and dry goods	Front window sits above the gusset at the fill line
Flat Bottom Bag	Larger shelf packs	Window can sit on the front or a side panel
3 Side Seal Pouch	Flat samples and portions	Window placed within the seal frame
Spout Pouch	Pourable products	Window kept clear of the fitment area
Back Seal Bag	Pillow-style snack packs	Window registered on a continuous film

Mylar Bags with Window Specifications

Window pouches are developed by coordinating the transparent area with the selected pouch format, seals, artwork and barrier structure. Review the specifications below to plan film, window and production.

Specification	Available Configuration
Product Type	Mylar Bag with Window
Category	Mylar Bags
Compatible Formats	Stand Up Pouch, Flat Bottom Bag, 3 Side Seal Pouch, Spout Pouch, Back Seal Bag
Custom Dimensions	Developed according to selected pouch format
Window Configuration	Custom size, shape and placement according to construction
Materials	Clear PET Film, PET Film, Metallized PET Film and compatible Kraft Paper Laminate constructions
Barrier Configuration	Product-specific laminate with reduced light protection through the transparent area
Closure / Features	Selected according to pouch format; zipper, tear notch, hang hole or spout fitment where compatible
Print Methods	Digital, Flexographic, Rotogravure
Print Coverage	Artwork coordinated around the registered clear area
Print Colors	Full-color CMYK and Pantone spot colors
Coating / Lamination	Gloss, Matte, Soft-Touch, Interior Aluminum Foil in opaque areas where compatible
Finishes	Foil Stamping, Spot UV, Raised 3D UV
Starting Price	From $0.55 / unit; final price depends on format, size, window, film, printing and quantity
Minimum Order	500 units
Standard Lead Time	7 days from approved proof after window and film construction are confirmed
Rush Production	Available on request
Shipping	USA and worldwide

Customization

Customize Your Mylar Bags with Window

Start with the product and pouch format, then develop the window around the required visibility, fill level, seals, barrier and artwork.

01

Window Shape and Size

Choose a small reveal or vertical strip when the product is light-sensitive, a horizontal strip to show texture across the pack, a custom shape that ties into the artwork, or a larger clear section when visibility matters most. Final feasibility depends on the film structure and production method.

02

Window Placement

Placement is coordinated with zipper tracks, spout fitments, gusset folds, tear notches, seal zones and expected fill level so the clear area reveals the intended part of the product.

03

Film and Barrier Structure

Choose metallized or foil-lined film around the window when the product needs a strong barrier, or a clear or kraft-look laminate when presentation leads. The transparent area always provides less light protection, so product sensitivity is part of the specification.

04

Printing and Window Registration

Artwork is aligned around the clear section so graphics, labels and product visibility work together. Registered printing and production tolerances are considered during design development.

05

Pouch Format and Closures

Stand Up, Flat Bottom, 3 Side Seal, Spout and Back Seal formats can be considered. Zippers, tear notches, hang holes and fitments are selected according to the chosen construction.

Ordering

How to Order Custom Mylar Bags with Window

Ordering Mylar bags with window takes five steps: share the product and requirements, confirm the format, window and dieline, approve the artwork proof, move into production, and ship. Orders start at 500 units, with standard production in 7 days from approved proof after the window and film are confirmed.

01
Request a Quote
Share the product, its light sensitivity, fill weight, preferred format, window shape and position, closures and quantity. Packaging Dock typically responds to quote requests within 24 hours.
02
Confirm the Format, Window and Dieline
Pouch format, dimensions and window size and placement are developed around the product and fill line. Packaging Dock then provides a custom dieline showing printable areas, seal zones and the window.
03
Approve the Artwork and Proof
Artwork is prepared on the dieline with free design support available. The proof is reviewed for window registration, panel layout, barcode placement and finishes before approval.
04
Production
Production begins after the proof and the final window and film construction are approved. Standard production is 7 days from approved proof, with rush production available on request.
05
Shipping
Finished window pouches ship across the USA and worldwide. Transit method, delivery time and shipping cost depend on the destination, order volume and shipment requirements.

Sample note: A pre-production sample can be arranged when the project requires physical approval before the full production run.

Uses

Who Uses Mylar Bags with Window?

Window pouches suit products that benefit from visual inspection when the reduced light barrier in the clear area is acceptable for the application. See Retail packaging for shelf-led formats.

01
Candy and Confectionery
Candy, coated sweets and colorful confectionery can use a window to make product color and assortment visible while printed areas carry branding and required information. What matters here: window size kept modest for light-sensitive sweets. See Custom Candy Bags.
02
Nuts, Dried Fruit and Snacks
Nuts, dried fruit, granola and specialty snacks can use a clear section to show texture and quality, with the remaining film structure selected around moisture and oxygen requirements. What matters here: an oxygen barrier in the printed areas for nuts.
03
Baked Goods and Dry Foods
Suitable dry bakery products and specialty foods can use window pouches where product appearance supports the retail presentation and the selected materials meet the project's food-contact needs. What matters here: grease resistance and food-contact materials.
04
Pet Treats and Specialty Dry Goods
Dry pet treats and other specialty goods can use customized window placement to show product size and appearance while maintaining branded printed panels. What matters here: window placed at the settled fill line.
