Overview & Specifications
What Is a Stand Up Pouch?
A stand up pouch is a flexible pouch made from a front panel, a back panel and a folded bottom gusset. The gusset lies flat while the pouch is empty and opens as product is filled, forming a base that lets the pouch stand upright. Compared with a Flat Bottom Bag, it uses a simpler construction with two main printed faces.
How the Bottom Gusset Works
The bottom gusset is what turns a flat pouch into a standing one.
01

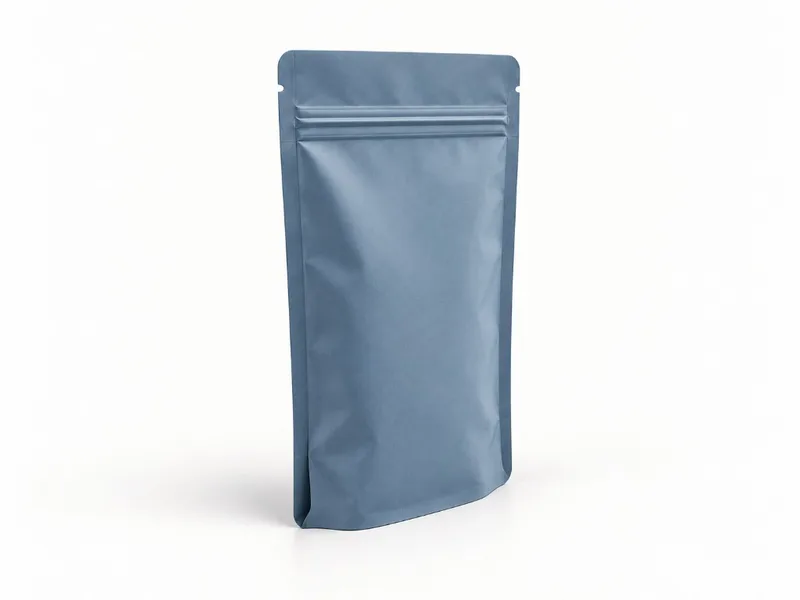

Flat When Empty
The gusset is folded inward between the front and back panels, so empty pouches stack flat for storage and shipping.
02
Opens When Filled
As product settles to the bottom, the gusset spreads open and forms an oval or rounded base that supports the pouch upright.
03

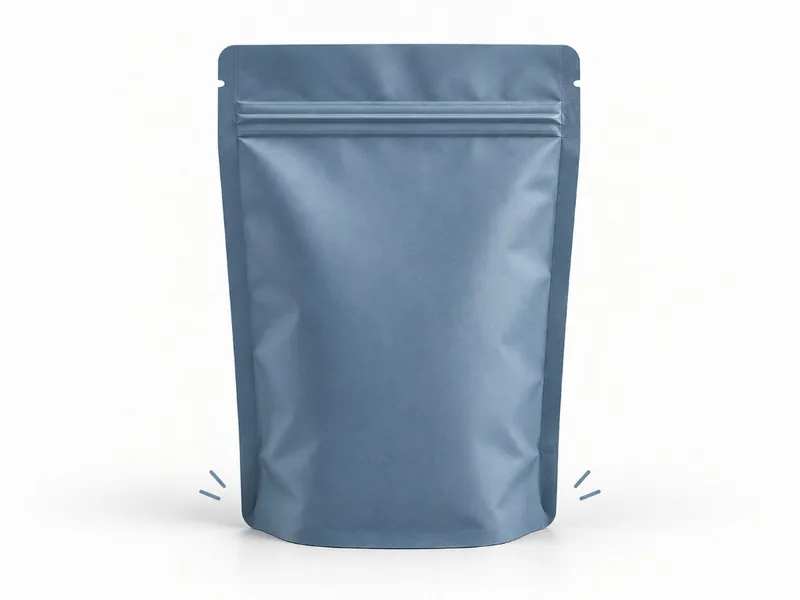

Fill Determines Stance
How well the pouch stands depends on gusset depth, product weight and density, fill level and film stiffness. A pouch that is too narrow, too shallow, underfilled or built with an unsuitable laminate may not stand as intended even when the gusset itself is correctly formed.
Anatomy of a Stand Up Pouch
A stand up pouch is built around two primary faces, a folding bottom gusset and a top filling and closure zone.
-
01

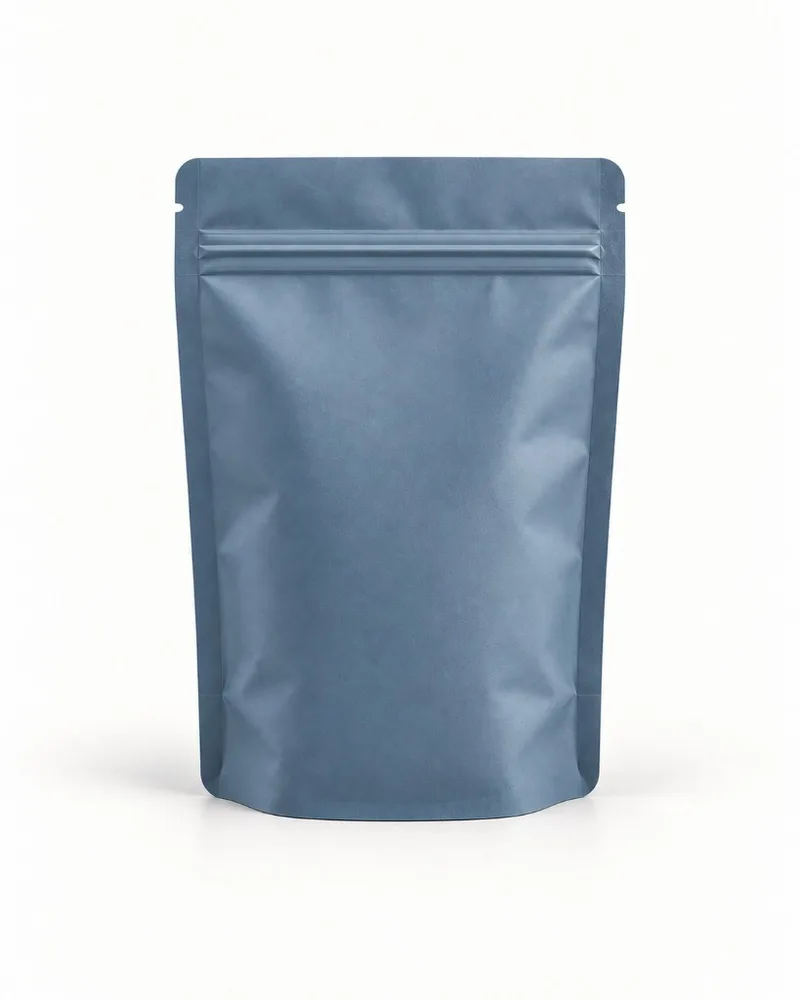

Front Panel
Primary branding, product name and front-facing communication.
-
02

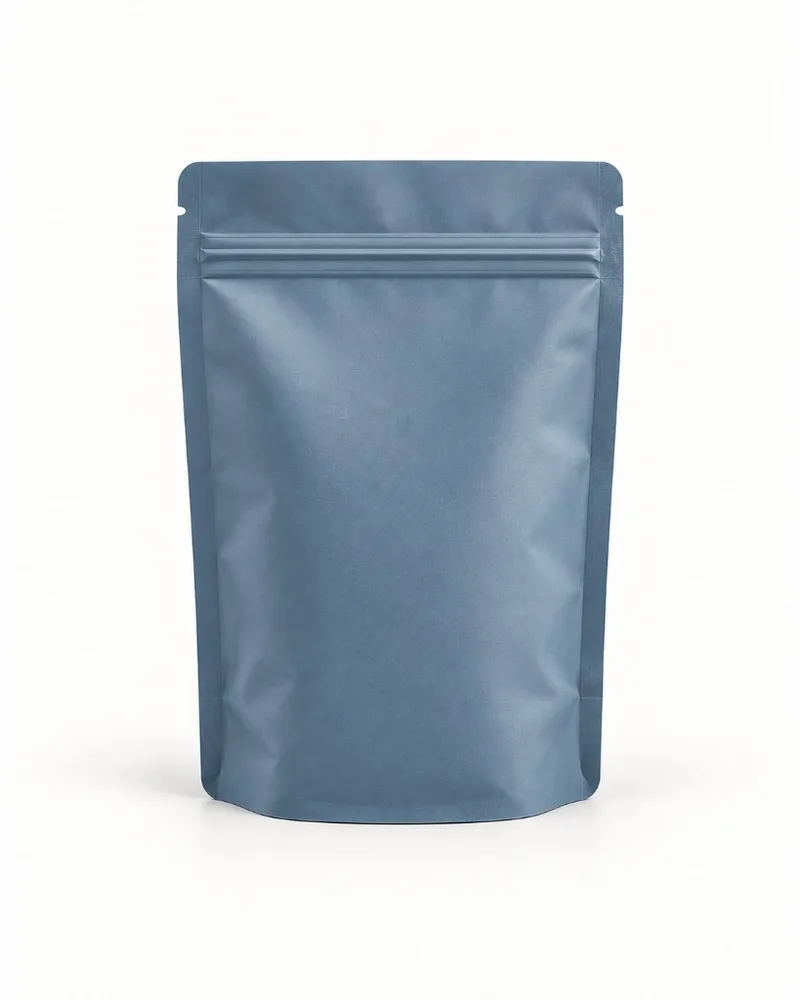

Back Panel
Ingredients, directions, barcode, regulatory information and supporting product copy.
-
03
Bottom Gusset
Expands during filling to create pouch depth and the standing base.
-

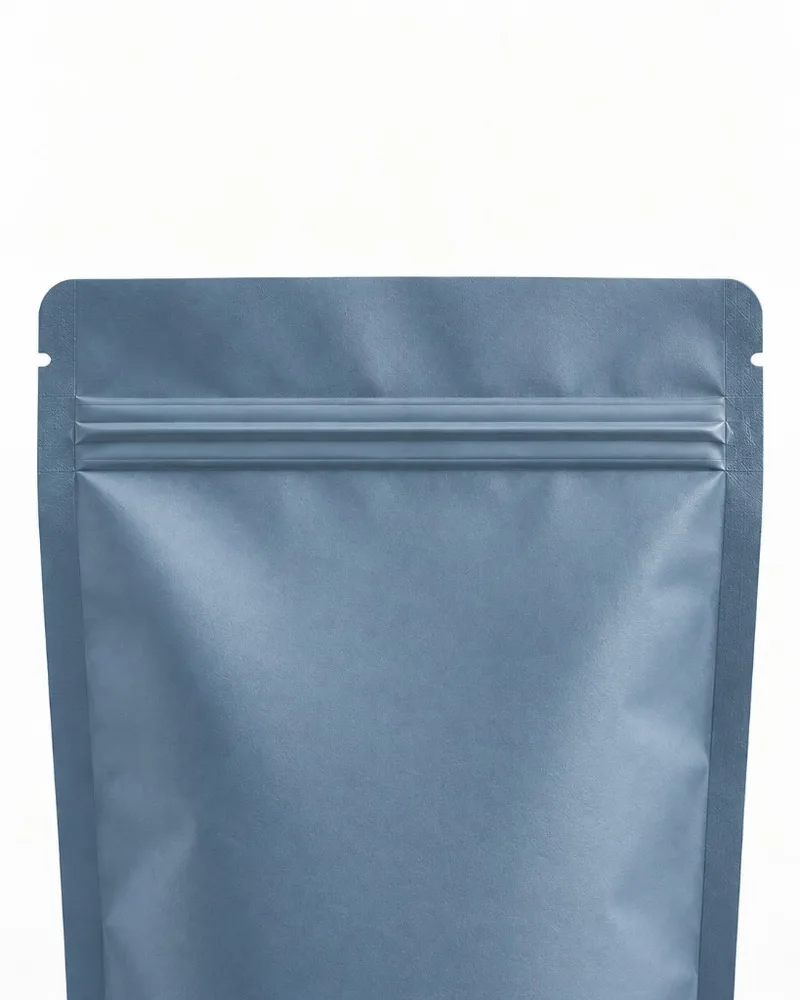

Top Filling and Closure Zone
Filling space, zipper or other closure, tear notch and final heat seal where specified.
Keep important copy, logos and barcodes clear of side seals, bottom gusset folds, zipper areas and the final seal zone.
Bottom Gusset Styles
Common bottom gusset styles include the three below, selected around fill weight and presentation.
| Style | How It Is Built | Typically Suited To |
|---|---|---|
| Round bottom (Doyen) | A curved U-shaped seal across the gusset, which acts as feet for the pouch | Lighter fills, commonly around 1 lb or less |
| K-seal bottom | Angled seals at the two bottom corners | Medium to heavier fills, commonly around 1 to 5 lb, with more base stability |
| Plow (folded) bottom | A W-folded gusset with no seal across the base, so the product sits on the base panel | Dense or heavier fills such as flour, rice, grains and seeds |
These weight ranges are guidelines rather than fixed limits; the style is confirmed on the dieline with the pouch dimensions.
Application guide
When Is a Stand Up Pouch the Right Choice?
A stand up pouch works well when a product needs upright shelf display, a resealable format and an efficient flexible structure across a wide range of sizes, such as snacks, coffee, tea, powders and pet treats.
-
01
Shelf
Upright Front-Facing Display
Once filled, the pouch stands on its gusset and presents one large front panel to the shopper, giving branding and product information a clear position on shelf. -
02
Range
Broad Product and Size Range
The same structure can be sized from small sample-style pouches to multi-pound packs, so one pouch format can cover several product lines and sizes in a range. -
03
Build
Efficient Construction
A stand up pouch uses a simpler build than a Flat Bottom Bag while still standing on shelf, which makes it a practical middle ground between flat pouches and more structured formats. Final pricing depends on the selected specifications. -
04
Alternative
When Another Format May Fit Better
If side-panel artwork or a squared, box-like footprint matters, a Flat Bottom Bag may suit better. For liquids, sauces or purees that need pouring, a Spout Pouch is the more practical format, and a Back Seal Bag may fit when production is built around a rear-seamed pillow pack.
Stand Up Pouch Specifications
Custom stand up pouches are produced to custom width, height and bottom gusset depth, with the film structure, barrier level, closures, printing and finishes configured around the packaged product and its presentation.
| Specification | Available Configuration |
|---|---|
| Product Type | Stand Up Pouch |
| Category | Mylar Bags |
| Custom Dimensions | Custom W × H × bottom gusset |
| Reference Fill Range | Approx. 1 oz to 2 lb, product-density dependent, with custom sizing |
| Bottom Gusset Styles | Common styles include round (Doyen), K-seal and plow bottom; selected around fill weight and confirmed on the dieline |
| Panel Configuration | Front, back, bottom gusset |
| Materials | PET film, clear PET film, metallized PET film, holographic PET film, kraft paper laminate and project-specific laminate structures |
| Laminate Thickness | Typical custom range 80–180 μm total, selected around fill weight, barrier, stiffness and handling |
| Closures | Ziplock, hook-and-loop zipper and child-resistant closure options where applicable |
| Functional Features | Tear notch, hang hole and clear window |
| Coffee Valve Option | One-way degassing valve available through Coffee Mylar Bags with Valve |
| Print Methods | Digital, flexographic and rotogravure |
| Print Coverage | Front only, front and back, or full wrap |
| Print Colors | Full-color CMYK and Pantone spot colors |
| Coating / Lamination | Gloss, matte and soft-touch; interior aluminum foil where required |
| Finishes | Foil stamping, Spot UV and Raised 3D UV |
| Food-Contact Documentation | Applicable testing and documentation can be arranged per order for the selected construction and destination market |
| Starting Price | From $0.55 / unit; final price depends on size, material, printing, features, finishes and quantity |
| Minimum Order | 500 units |
| Standard Production | 7 days from approved proof after final specification |
| Rush Production | Available on request |
| Shipping | USA and worldwide |
How Stand Up Pouches Compare to Related Pouch Formats
A stand up pouch sits between flat pouches and more structured formats; the clearest differences are in the base, the printable area and what the pouch is filled with.
| Attribute | Stand Up Pouch | Flat Bottom Bag | 3 Side Seal Pouch | Spout Pouch |
|---|---|---|---|---|
| Base structure | Folding bottom gusset | Distinct flat base + two side gussets | No gusset; three sealed edges | Pouch body with an integrated fitment; body geometry varies by configuration |
| Printable surfaces | 2 primary faces + gusset area | 5 defined panels | 2 primary faces | 2 primary faces + gusset area |
| Filled presentation | Upright, flexible profile | Structured, box-like footprint | Typically flat | Upright, with the spout at the top or corner |
| Self-standing | Yes, when correctly sized and filled | Yes, when correctly sized and filled | Typically no | Depends on pouch body; stand-up configurations can self-stand |
| Main sizing variables | Width, height, bottom gusset | Width, height, side gussets and base | Width, height, seal width | Pouch dimensions, fill volume and fitment position |
| Product type | Dry and granular goods | Dry and granular goods | Dry goods, samples and portions | Liquids, sauces, purees and pourable products |
| Best fit | Versatile upright retail packaging | Defined shelf footprint and five-panel presentation | Compact, simple flat packaging | Controlled pouring or dispensing |
What Size Stand Up Pouch Do You Need?
Choose a stand up pouch by usable volume and product density rather than by the weight in the size name. Labels such as 2 oz, 8 oz and 1 lb are commonly used reference sizes, but the space inside the pouch determines how much of a given product fits. The same pouch can hold a greater weight of a denser product, such as flour or rice, and a lower weight of a lighter product, such as puffed snacks.
Common Stand Up Pouch Sizes and Approximate Fill Volume
These dimensions are reference starting points for project planning, listed as width × height × bottom gusset. Final dimensions are checked against the actual product, closure, seal area, fill method and required headspace.
| Reference Size | Approx. W × H × Bottom Gusset | Approx. Usable Volume |
|---|---|---|
| 1 oz | 3 × 5 × 2 in | ~0.08 L / 0.3 cups |
| 2 oz | 4 × 6.5 × 2.25 in | ~0.16 L / 0.7 cups |
| 4 oz | 5 × 8 × 3 in | ~0.3 L / 1.3 cups |
| 8 oz | 6 × 9.5 × 3.25 in | ~0.6 L / 2.6 cups |
| 12 oz | 7 × 11 × 3.5 in | ~0.9 L / 3.9 cups |
| 1 lb | 7.6 × 11.75 × 4 in | ~1.2 L / 5.3 cups |
| 2 lb | 9.6 × 14 × 3 in | ~2.5 L / 10.5 cups |
Usable volume is measured to the fill line, so the product remains below the zipper and top seal. Larger stand up pouches can be developed to custom dimensions.
How Much Can Each Stand Up Pouch Size Hold?
The same pouch volume can carry very different weights because each product has a different loose-fill density.
| Product | 2 oz Size | 4 oz Size | 8 oz Size | 1 lb Size | 2 lb Size |
|---|---|---|---|---|---|
| Whole-bean coffee | ~2 oz | ~4 oz | ~8 oz | ~16 oz | ~32 oz |
| Ground coffee | ~2 oz | ~4.5 oz | ~9 oz | ~17.5 oz | ~35 oz |
| CTC tea | ~2.5 oz | ~5 oz | ~10 oz | ~20 oz | ~39 oz |
| Protein powder | ~2 oz | ~4.5 oz | ~9 oz | ~17.5 oz | ~35 oz |
| Flour | ~3 oz | ~6.5 oz | ~13 oz | ~26 oz | ~52 oz |
| White rice | ~4.5 oz | ~9 oz | ~18 oz | ~36 oz | ~72 oz |
| Puffed snacks | ~0.5 oz | ~1 oz | ~2 oz | ~4 oz | ~8 oz |
Important: These fill weights are reference values, not guaranteed capacities. Particle size, roast level, grind, moisture, aeration, settling, ingredient formulation and required headspace can all change the final fill. A trial fill should be completed before the production dieline is approved.
If your product is not listed, share the product and target fill weight or volume with the quote request so the pouch can be sized around it.
Why Does Gusset Depth Matter as Much as Height?
A stand up pouch gains most of its usable volume where the gusset opens at the base. Two pouches of the same height can hold noticeably different amounts if one has a deeper gusset, and a deeper gusset also gives the filled pouch a wider stance. This is why stand up pouches are sized from target weight, product density and gusset depth together, not from height alone.
