Overview & Specifications
What Is a Collapsible Rigid Box?

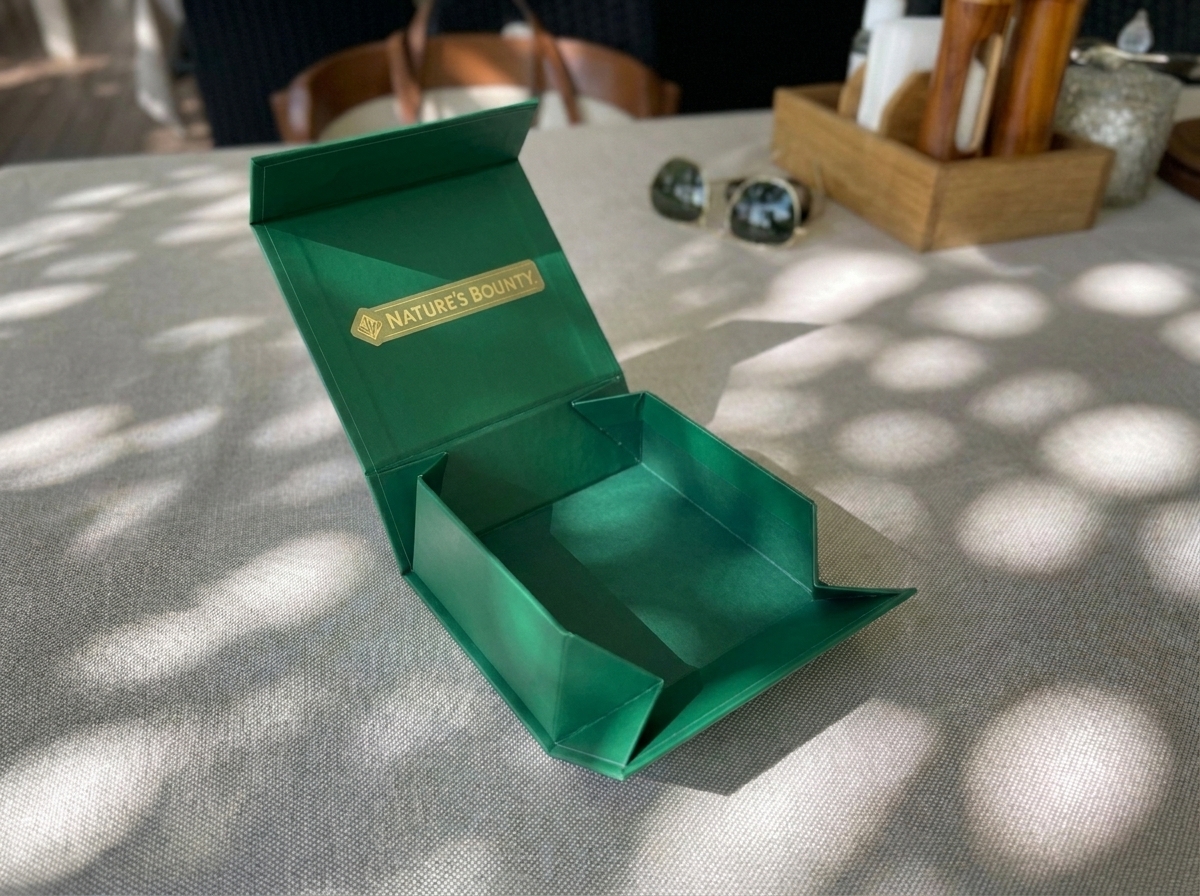

A collapsible rigid box is a rigid-board box built with fold and joint zones, so the empty box lies flat for shipping and storage and is raised into a structured flip-top box before the product goes in. It looks and handles like a rigid box once assembled, but takes far less space before use than a box that leaves the factory fully set up.
How a Collapsible Rigid Box Folds and Sets Up
The format works through three engineered features.
01
Fold Zones
Narrow gaps between board panels, bridged by the wrap, let walls fold down flat and stand back up without cracking the board.
02
Corner and Joint Connections
The corners are designed so the raised walls meet and hold square. How they are held depends on the assembly method chosen.
03
Assembly Method
The raised walls are secured by the specified method: a corner-lock configuration or adhesive assembly, with magnetic elements where the selected construction uses them. The method decides how fast the box sets up and whether it can be flattened again.
Anatomy of a Collapsible Rigid Box
-
01
Lid
Attached flip-top lid once assembled.
-
02
Fold Zones
Engineered gaps that let the walls fold flat.
-
03
Side Walls
Fold up from the base and lock at the corners.
-
04
Assembly Points
Corner locks, adhesive areas or magnetic elements.
-
05
Interior
Optional insert, compartments or printed inner surfaces.
Fold zones flex during setup, so keep fine text, foil and Spot UV clear of fold lines, and check how wall artwork lines up once the box is raised.
Assembly Methods
The closure and assembly method is chosen per project; none is universal to the format, and each is confirmed on the sample.
| Assembly Method | How the Walls Are Held | Typically Suited To |
|---|---|---|
| Corner lock | Mechanical corner-lock configuration where specified | Fast hand setup at a fulfillment location |
| Adhesive assembly | Adhesive bonds the raised walls where specified | A fixed, set-up result after a single assembly |
| Magnetic elements | Concealed magnets where the selected construction uses them, such as the lid closure | A defined closing action; see Magnetic Closure Boxes |
Application guide
When Is a Collapsible Rigid Box the Right Choice?
A collapsible rigid box suits brands that want a rigid unboxing but cannot spend warehouse space on empty set-up boxes, such as apparel and fashion sets, PR and corporate gift programs, beauty kits, ecommerce and subscription shipments, and limited editions packed at a fulfillment center.
-
01
Lower
Lower Volume Before Packing
Flat boxes take less space in inbound freight and storage than set-up boxes. Actual savings depend on box size, case packing and shipping method. -
02
Rigid
Rigid Presentation After Setup
Once raised and secured, the box opens like a flip top rigid box, giving a heavier, more structured feel than a folding carton. -
03
Setup
Setup Where the Product Is Packed
Boxes can be shipped flat to a warehouse or fulfillment location and assembled only when needed, which suits rolling programs and seasonal peaks. Setup adds packing labor, so time it on a sample before committing to a large run. -
04
Alternative
When Another Format May Fit Better
If storage space is not a constraint and boxes are packed soon after delivery, a Flip Top Rigid Box avoids the setup step. For a removable lid, choose a Two Piece Rigid Box or a Shoulder Neck Rigid Box. A Hinged Rigid Box suits compact ring, bracelet and necklace cases, and a Custom Drawer Box suits a sliding reveal.
Collapsible Rigid Box Specifications
Custom collapsible rigid boxes are specified around fold geometry, the assembly method, board thickness, wraps, interior fit and finishes, with each flat blank developed to custom dimensions around the product rather than taken from a standard carton layout.
| Specification | Available Configuration |
|---|---|
| Product Type | Collapsible flip-top rigid box |
| Category | Rigid Boxes |
| Dimensions | Custom L × W × H, built around the product and packed configuration |
| Core Construction | Rigid board with engineered fold and joint zones |
| Assembly / Closure | Corner lock, adhesive assembly or magnetic elements |
| Base Board | Greyboard, or white-coated duplex board for a cleaner white face |
| Board Thickness | 1.5 mm, 2.0 mm, 2.5 mm or 3.0 mm |
| Wrap Paper | Art, custom printed, kraft, metallic, holographic, pearlescent or textured paper, or fabric/velvet wrap; paper commonly around 120–157 gsm |
| Interior | Fitted inserts, compartments and inside-lid print where required; insert material set per project |
| Interior Lining | Satin lining available |
| Print Coverage | Exterior only, exterior + interior lid, or full inside and outside |
| Print Methods | Offset, digital, UV or screen printing; CMYK and Pantone spot colors |
| Finishes | Matte, gloss or soft-touch lamination, foil stamping, emboss/deboss, Spot UV and raised 3D UV, kept clear of fold zones |
| Fold and Assembly Fit | Confirmed on sample from final board, wrap and assembly method |
| Starting Price | From $2.85 / unit; final price depends on size, board, assembly method, interior, finishes and quantity |
| Minimum Order | 500 units |
| Standard Production | 7 days from approved proof |
| Rush Production | Available on request |
| Shipping | USA and worldwide (ships flat) |
How Collapsible Boxes Compare to Other Rigid Box Structures
The collapsible box is the only rigid structure here that arrives flat; the trade-off is a setup step before packing.
| Attribute | Collapsible Rigid Box | Flip Top Rigid Box | Two Piece Rigid Box | Custom Drawer Box |
|---|---|---|---|---|
| Arrives | Flat | Set up | Set up, lid and base nested | Set up, tray in sleeve |
| Setup before packing | Raise walls and secure | None | None | None |
| Opening | Attached flip-top lid | Attached flip-top lid | Lid lifts fully off | Tray slides out |
| Storage volume before use | Lowest of these four | Full box volume | Full box volume | Full box volume |
| Best fit | Large programs, limited storage | Ready-to-pack attached-lid boxes | Full-access gift and retail boxes | Staged reveal, organized trays |
What Size Collapsible Rigid Box Do You Need?
Size the interior from the product outward, then let the dieline add board, wrap and fold-zone space. The interior must hold the product and any insert with clearance, and the fold zones need their own allowance so the walls fold flat without straining the wrap and stand square once raised.
How Interior, Walls and Fold Zones Relate
The figures below are planning references, not fixed manufacturing rules; final allowances depend on product shape, interior, board, wrap and assembly method.
| Step | Typical Allowance |
|---|---|
| Product to interior (no insert) | Add about 2–3 mm to length and width, 2–5 mm to height |
| Interior to exterior, 1.5 mm board | About +4–5 mm per dimension |
| Interior to exterior, 2.0 mm board | About +5–6 mm per dimension |
| Fold zones | Gap width set on the dieline from board thickness, so walls fold flat and stand square |
| Flat size | Roughly the unfolded footprint at a few board thicknesses deep, instead of the full box height |
Typical Board Selection Starting Points
| Box Size (longest side) | Typical Board |
|---|---|
| Up to about 150 mm (6 in) | About 1.5–2.0 mm |
| About 150–250 mm (6–10 in) | About 2.5 mm |
| Over about 250 mm (10 in), or contents over about 1 kg | About 3.0 mm |
Important: All values here are references for planning. Rigid board is normally held to about ±1–2 mm, and fold zones add movement that a fixed box does not have, so wall squareness and lid closure after assembly are confirmed on a sample.
If you are unsure, share the product dimensions and weight with the quote request, and the box is sized around them.
Is a Collapsible Box as Rigid as a Set-Up Box?
Once assembled correctly, it handles as a rigid box, but rigidity depends on board, size, joints and the assembly method. A collapsible box is not described as equal to every permanently set-up rigid box; for heavy contents, the board and assembly method are chosen to suit, and the result is checked on a sample.
